DVB-T Tuner with multimedia USB for Land Rover touchscreen navigation (3rd generation) incl. video in motion



Diversity DVB-T Tuner with USB port and multimedia interface in one casing. The Plug & Play cable kit allows for easy connection to the navigation unit. The Tuner functions are controlled via the navigation buttons. The controls are based on the control scheme of the original TV tuner. Detected stations will be added directly to the station roster of the TV level. The EPG is also displayed in the original TV menu of the navigation system.

Product features:



- Full plug and play vehicle specific dual DVB-T tuner and USB AV-Player

- DVB-T-Tuner MPEG2 und MPEG4 compatible (HD)

- USB AV-Player for multimedia playback (audio, video, photo)

- Supports the following video / audio container formats and Video Codes (until 1080p):

  MKV, AVI, MP4, MOV, FLV, MPEG-1/2/4, H.264

- USB AV-Player with last position memory for audio and video playback

- EPG (electronic program guide)

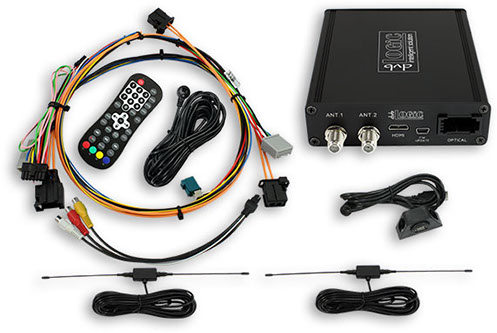

- With two active DVB-T glass mount antennas and USB extension with installation socket

- Integrated into and controllable by vehicle infotainment

- AV input with IR control channel + control of after market devices

- Power on remote out trigger signal (+12V max 1A) to switch on connected devices

- Video in motion

- After market rear view camera input

- Rear view camera power supply output (+12V max. 1A)

- Rear-seat-entertainment video output

- Optional remote control for rear seat entertainment

Compatibility:



Compatible with Land Rover vehicles with touchscreen navigation 3rd generation.



Used in the following vehicles:

- Range Rover Evoque L538 (model years 2012- )

- Range Rover Sport L320 (model years 2012- )

- Discovery 4 L319 (model years 2012- )
