DVB-T Tuner with multimedia USB port for COMAND NTG2.5

incl. video in motion

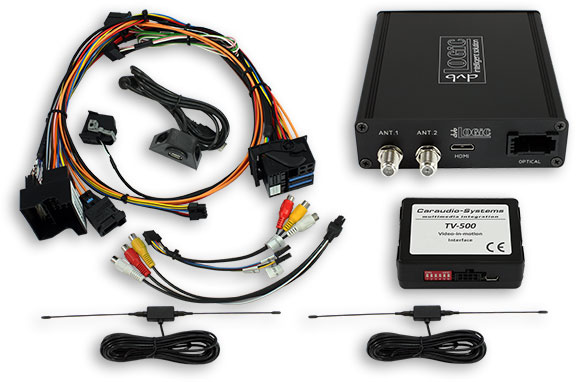

Diversity DVB-T Tuner with USB port and multimedia interface in one casing. The Plug & Play cable kit allows for easy connection to the navigation unit. The Tuner and the USB multimedia level functions are controlled via the navigation buttons. The interface also supports the connection of an additional video source (e.g. DVD Player). Additionally, the interface provides an S-connection for the video source.

Product features:



- Full plug and play vehicle specific dual DVB-T tuner and USB AV-Player

- DVB-T-Tuner MPEG2 und MPEG4 compatible (HD)

- USB AV-Player for multimedia playback (audio, video, photo)

- Supports the following video / audio container formats and Video Codes (until 1080p):

  MKV, AVI, MP4, MOV, FLV, MPEG-1/2/4, H.264

- USB AV-Player with last position memory for audio and video playback

- EPG (electronic program guide)

- With two active DVB-T glass mount antennas and USB extension with installation socket

- Integrated into and controllable by vehicle infotainment

- AV input with IR control channel + control of after market devices

- Power on remote out trigger signal (+12V max 1A) to switch on connected devices

- Video in motion

- Rear-seat-entertainment video output

- Optional remote control for rear seat entertainment

Compatibility:



Compatible with Mercedes Benz with navigation COMAND APS NTG2.5.



Used inter alia in the following vehicles:



- A-class (W169) from 07/2008

- B-class (W245) from 07/2008 till 10/2011

- CLS-Coupe (W219) from 04/2008 till 12/2010

- E-class (W211) from 06/2008 till 03/2009

- G-Model (G463) from 09/2008

- GL-class (X164) from 07/2008

- ML-class (W164) from 07/2008 till 10/2011

- R-class (W251) from 07/2008

- SL-class (R230) from 04/2008

- SLK-class (R171) from 04/2008 till 02/2011

- Viano
