DVB-T Tuner with multimedia USB port for COMAND NTG1

incl. video in motion

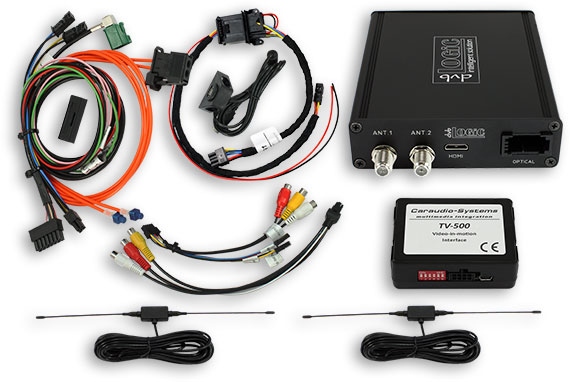

Diversity DVB-T Tuner with USB port and multimedia interface in one casing. The Plug & Play cable kit allows for easy connection to the navigation unit. The Tuner and the USB multimedia level functions are controlled via the navigation buttons. The interface also supports the connection of an additional video source (e.g. DVD Player). Additionally, input for a rear view camera and S-connnection for the video source are provided.

Product features:



- Full plug and play vehicle specific dual DVB-T tuner and USB AV-Player

- DVB-T-Tuner MPEG2 und MPEG4 compatible (HD)

- USB AV-Player for multimedia playback (audio, video, photo)

- Supports the following video / audio container formats and Video Codes (until 1080p):

  MKV, AVI, MP4, MOV, FLV, MPEG-1/2/4, H.264

- USB AV-Player with last position memory for audio and video playback

- EPG (electronic program guide)

- With two active DVB-T glass mount antennas and USB extension with installation socket

- Integrated into and controllable by vehicle infotainment

- AV input with IR control channel + control of after market devices

- Power on remote out trigger signal (+12V max 1A) to switch on connected devices

- Video in motion

- After market rear view camera input

- Rear view camera power supply output (+12V max. 1A)

- Rear-seat-entertainment video output

- Optional remote control for rear seat entertainment

Compatibility:



Compatible with Mercedes Benz and Maybach with navigation COMAND APS NTG1.

Only for vehicles with a green fakra male connector on the screen backside of head-unit (up to 02/2004).



Used inter alia in the following vehicles:



- CLS-Coupe (W219) from 10/2004 until approx. 04/2008

- E-class (W211) until approx. 04/2008

- SLK-class (R171) from 03/2004 until approx. 04/2008
