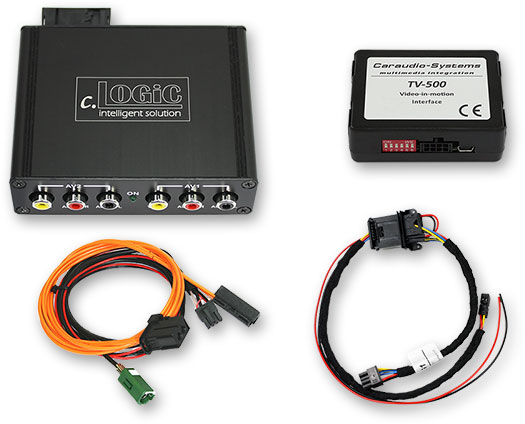

Multimedia interface for COMAND NTG1 incl. video in motion



This interface allows for the connection of external video sources (e.g. DVD Player, DVB-T Tuner). The connected video sources is controlled via the navigation unit buttons. Additionally, the interface provides automatic rear view camera switching and an S-connection for the video sources.

Product features:



- Plug and play multimedia interface

- 2 AV inputs with separate IR-control channels

- Optional control of after-market devices by OEM buttons (e.g. DVD player, DVD changer, USB/iPod devices, …)

- Power on remote out trigger signal (+12V max. 1A) to switch on connected devices

- Video in motion

- Rear view camera input

- Rear view camera power output (+12V max. 1A)

- Automatic switching to rear view camera input (After market camera works only in c.LOGIC mode)

Compatibility:



Compatible with Mercedes Benz and Maybach with navigation COMAND APS NTG1.

Only for vehicles with a green fakra male connector on the screen backside of head-unit (up to 02/2004).



Used in the following vehicles:

- CLS-Coupe (W219) from 10/2004 until approx. 04/2008

- E-class (W211) until approx. 04/2008

- SLK-class (R171) from 03/2004 until approx. 04/2008
