Multimedia interface for VW - RNS510 / RNS810

incl. video in motion

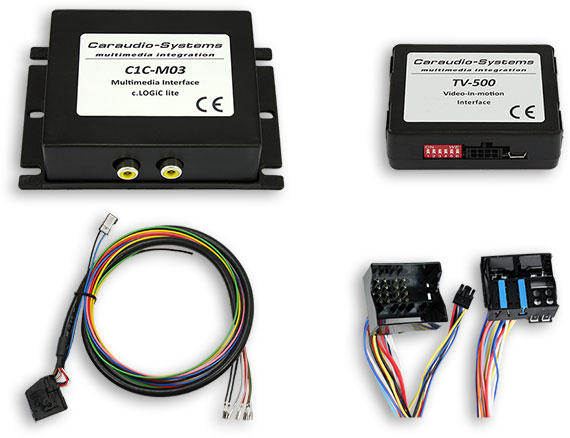

This interface allows for the connection of external video source (e.g. DVD Player, DVB-T Tuner). The connected video source is controlled via the navigation unit buttons. Additionally, the interface provides automatic rear view camera switching and an S-connection for the video sources.

Product features:



- 1 AV-inputs with separate IR-control channels

- Optional control of after market devices by OEM buttons (e.g. DVD player, DVD changer, USB/iPod devices, …)

- Power on remote out trigger signal (+12V max. 1A) to switch on connected devices

- Video in motion

- Rear view camera input

- Rear view camera power output (+12V max. 1A)

- Automatic switching to rear view camera input

Compatibility:



Compatible with VW with RNS510 (with min. version B with SW1100) and RNS810 navigation systems.

For vehicles WITH factory rear view camera HIGH system!



Used inter alia in the following vehicles:

- VW Phaeton

- VW Tiguan

- VW Touareg

- VW Touran

- VW T5

- VW Passat until 2007
