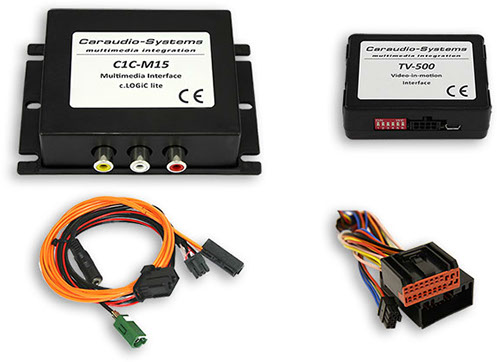

Multimedia interface for Land Rover touchscreen navigation

(1st generation) incl. video in motion



This interface allows for the connection of external video source (e.g. DVD Player, DVB-T Tuner). The connected video source is controlled via the navigation unit buttons. Additionally, the interface provides automatic rear view camera switching and an S-connection for the video source.

Product features:



- Plug and play multimedia interface

- 1 AV inputs with separate IR-control channels

- Optional control of after-market devices by OEM buttons (e.g. DVD player, DVD changer, USB/iPod devices, …)

- Power on remote out trigger signal (+12V max. 1A) to switch on connected devices

- Video in motion

- Rear view camera input

- Rear view camera power output (+12V max. 1A)

- Automatic switching to rear view camera input (After market camera works only in c.LOGIC mode)

Compatibility:



Compatible with Land Rover vehicles with touchscreen navigation 1st generation.



Used in the following vehicles:

- Range Rover (Vogue) L322 (model years 2005-2009)

- Range Rover Sport L320 (model years 2005-2009)

- Discovery 3 L319 (model years 2004-2009)
