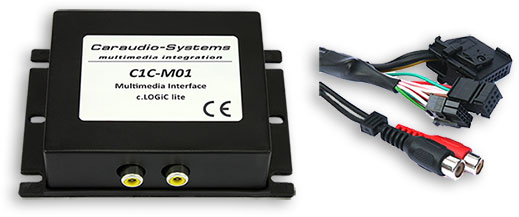

Multimedia interface for COMAND 2.0 / COMAND APS220 incl. video in motion



This interface allows for the connection of external video source (e.g. DVD Player, DVB-T Tuner). The connected video source is controlled via the navigation unit buttons. Additionally, the interface provides automatic rear view camera switching and an S-connection for the video source.

Product features:



- Plug and play multimedia interface

- 1 AV inputs with separate IR-control channels

- Optional control of after-market devices by OEM buttons (e.g. DVD player, DVD changer, USB/iPod devices, …)

- Power on remote out trigger signal (+12V max. 1A) to switch on connected devices

- Video in motion

- Rear view camera input

- Rear view camera power output (+12V max. 1A)

- Automatic switching to rear view camera input (only in c.LOGIC mode)

Compatibility:



Compatible with Mercedes Benz navigation COMAND 2.0 (4:3) or COMAND APS CD/220 (16:9).



Used in the following vehicles:

- C-class (W203) until 04/2004

- CL-class (C215) from 09/2002 until 09/2003

- CLK-class (C208 W208) all MY

- CLK-class (C209 W209) until 05/2004

- E-class (W210) all MY

- G-class (W463) until 03/2007

- ML-class (W163) all MY

- S-class (W220) from 09/2002 until 09/2003

- SL-class (R230) until 06/2004
